Gas Mixer for PVD/CVD Hard Coatings

PVD/CVD hard coatings for anti-wear tools and components development.

Tools and machinery components are the key instruments of every industrial production. During their working lifetime, tools and components are subjected to intensive degradation due to the combined erosive and abrasive wear and due to the corrosive attack of agents.

This degradation shortens the instruments’ lifetime with a direct impact on process productivity. For an industrial country, the costs related to the maintenance/substitution of tools and components can reach 4% of the Gross Internal Product (GIP).

For all these reasons it is fundamental to enhance instruments’ lifetime and consequently productivity. The commonly used solution to enhance tools and components’ performances is the application of protective hard coatings. The substrate of hard-coated tools and components is protected by a thin film (generally a few micrometers thick) of hard materials whose main features are high hardness and chemical inertness.

Brittle and expensive, these hard protective coatings are usually inappropriate for bulk tool material but turn out to be extremely effective for thin film applications. Hard coatings are applied to substrates through Physical Vapor Deposition (PVD) and Chemical Vapor Deposition (CVD).

Both these techniques share the need for a highly accurate and controlled gas mixture in order to obtain the desired results. The MCQ solves this need with its Gas Blenders, professional gas mixers for precision gas mixtures preparations, gas flow meter control, and dynamic gas mixtures management.

Material choice.

All the tools and the mechanical components are subjected to wear. Hard protective coatings have been specifically implemented to reduce wear and therefore increase the instruments’ lifetime. For each process, there are different types of wear mechanisms the tools are subjected to (e.g. abrasion, adhesion, corrosion, high temperature, material sticking, etc.). Therefore, in order to choose the most suitable coating material, it is very important to know which mechanism has the highest contribution to wear. Currently, there are two material families capable of fulfilling the majority of the industrial process needs: ceramic materials and the CVD synthetic diamond.

• Ceramic Materials.

Ceramic material is a generic term that refers to a large family of compounds, characterized by high hardness and chemical inertness. The main compounds used for hard coatings applications are nitrides and carbides of transition metals, especially titanium (Ti), chromium (Cr), and zirconium (Zr). These types of hard coatings are not only suitable for anti-wear applications. Each compound has peculiar features that contribute to enhancing the material’s utility. Titanium nitride (TiN) coatings greatly enhance the substrate’s wear and corrosion resistance but they are also used for medical implant applications (due to their non-toxic nature) and for decorative purposes (due to the TiN gold appearance). Titanium carbide (TiC) and chromium nitride (CrN) are especially suitable for corrosion and oxidation protective coatings while zirconium nitride (ZrN) is often used for its refractoriness properties.

• CVD Diamond

Tools with natural or synthetic diamond inserts are widely used for industrial applications, especially in processes in which no other instrument is capable of providing satisfactory results. These tools are especially suitable for the processing of non-ferrous metals, ceramic materials, and plastics.

Despite their good performances, tools with diamond inserts tend to be expansive, and often inadequate for large-scale production purposes. During the last two decades, modern science has faced this problem with the development of Chemical Vapour Deposition Diamond (CVD Diamond).

Instead of small diamond inserts, this technique offers the possibility to produce tools and components that are completely covered by a homogeneous thin film of synthetic diamond. Compared with the fabrication of diamond inserts, the production of diamond-coated instruments has many advantages. Costs, since the deposition process is relatively cheap. Versatility, since diamond films can be virtually deposited onto any inorganic substrate with any complex geometry.

Efficiency, since diamond chemical and physical properties are transferred onto the substrate, modifying only the instrument surface properties and consequently increasing its wear resistance, cutting capacity, hardness, chemical inertness, etc. CVD diamond tools are especially suitable for processing graphite, composite materials (carbon fibers and fiberglass), green ceramics, and copper and aluminum alloys, while CVD diamond-coated components are mainly used for anti-wear applications.

GAS MIXER FOR HARD COATINGS

Gas Phase and Deposition Process.

Hard coatings depositions are performed through PVD and CVD processes. Cathodic Arc Deposition (Arc-PVD), Sputtering deposition (PVD sputtering), and all the CVD-related techniques require the use of a gas mixture containing the gaseous precursors for the deposition reaction. The scientific community works nowadays to constantly develop new and more effective hard coatings, managing and changing the deposition parameters in order to optimize processes and results.

Among all the deposition parameters (length, temperature, pressure, etc.), a fundamental role is leading the gas phase composition. For ceramic material applications, the gas mixture settings can be adjusted in order to modulate the final outcome. Different gas mixture compositions allow the production of ceramic coatings with specific chemical-physical properties, while dynamic management of the gas phase can be used to deposit high-performance multilayered coatings.

For CVD diamond applications, managing the gas phase is crucial. The gas phase is commonly composed of a hydrogen/methane mixture, with hydrogen as an activation gas and methane as a carbon source. The concentration of carbon-containing species has a significant influence on the growth rate, quality, and morphology of deposited diamonds. Small changes in the gas mixture composition can affect the diamond film structure, leading to the formation of micro-, nano-, or ultra nano-diamond.

The use of other gas species has also a strong dependence on the final product. The significant effects of the addition of nitrogen, oxygen, and carbon dioxide on deposited diamond films have been well studied.

The MCQ Instruments solution.

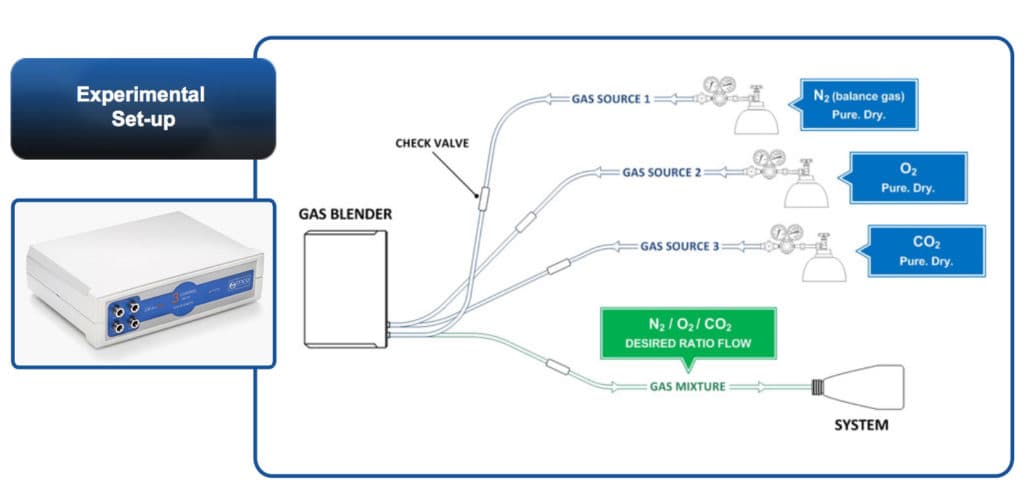

For all these applications, MCQ suggests the use of its Gas Blender Series, the ideal Gas Mixer for precision gas mixture preparations, gas flow meter control, and dynamic gas mixtures applications.

The Gas Blender Series are professional products specifically engineered to work with up to 6 components of non-aggressive gas mixtures. MCQ Instruments calibrates each channel of the Gas Mixer on customer request. The Gas Blender Series’ main features are high precision (1% accuracy for each channel), high repeatability (0,16% of reading value), and the fastest response time for setpoint value changes available on the market.

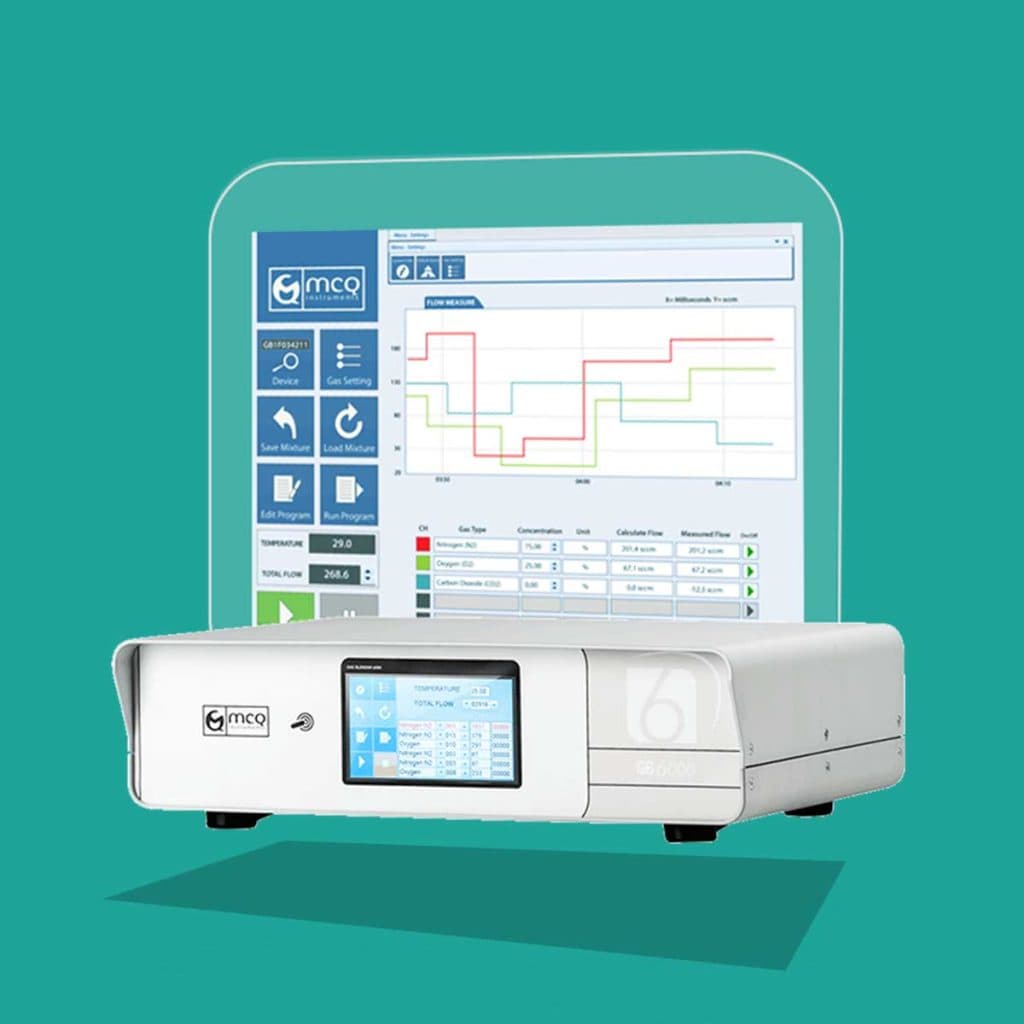

Bundled with the instrument, MCQ Instruments provides the Gas Mixture Creator Software, a SOFTWARE (compatible with any Windows operating desktop and laptop personal computer or touch screen for the latest products) that ensures an easy and intuitive way to manage mixtures dynamically with automation.
