GAS MIXER 15K

HIGH FLOW RATES

UP TO 3 INPUT CHANNELS
EACH CHANNEL FLOW RATE: 0 – 15000 mL/min
TOTAL MIXTURE FLOW RATE: 0 – 45 L/min

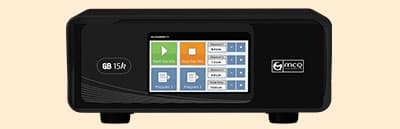

Gas Mixer GB 15k
DESCRIPTION

The MCQ Gas Blender 15K is the solution, specifically designed for the industrial sector, for managing and controlling HIGH FLOWS for non-corrosive gas mixing and dilution processes. Our device allows up to 3 channels gas mixing processes, all in a single box ready for a rack mount.

MAIN BENEFITS
Icon Pre-Mixed Gas Cylinder
Better solution than Pre-Mixed Gas Cylinders.

Our Gas Mixers offer a superior alternative to pre-mixed gas cylinders. Our devices create custom gas mixtures in real-time using pure gases, simplifying the storage and shipping process while reducing costs. Furthermore, there are no limitations on the combination or ratio of gas mixtures that can be generated.

Icon Mass Flow Controller
Better solution than Mass Flow Controllers.

A regular mass flow controller is completely inadeguate to measure and regulate small ratios keeping at same moment a stable flow. Comparing our Gas Mixer with a Mass Flow Controller reveals some significant advantages.

Icon Gas Mixer for Laboratory
A Gas Mixer for Laboratory.

Our Gas Mixers are specifically designed to help laboratories achieve the best results in terms of accuracy, modularity, and process speed, while using only a small amount of space in the environment.

Icon Laboratory in a Box
A Lab in a Box.

MCQ Instruments devices provide a complete laboratory experience in a single, ready-to-use box. Unlike traditional systems that require a complex tube system, external power supply, and significant space and budget considerations, our devices eliminate these additional requirements.

Icon Gas Mixer Easy to Use
No specific skills are required.

Gas Mixers are easy to use and FULLY AUTOMATED. No specific skills are required to start creating your Gas Mixtures. Fast, stable, accurate, provided with an intuitive software and touch display. It assures top performances even when managing low flow rates.

Icon Software Gas Mixture Creator
Software included.

MCQ Instruments provides bundled software with all of its devices for full automation. Our instruments are designed to control every parameter, from the individual components of a gas mixture to the management of the entire process.

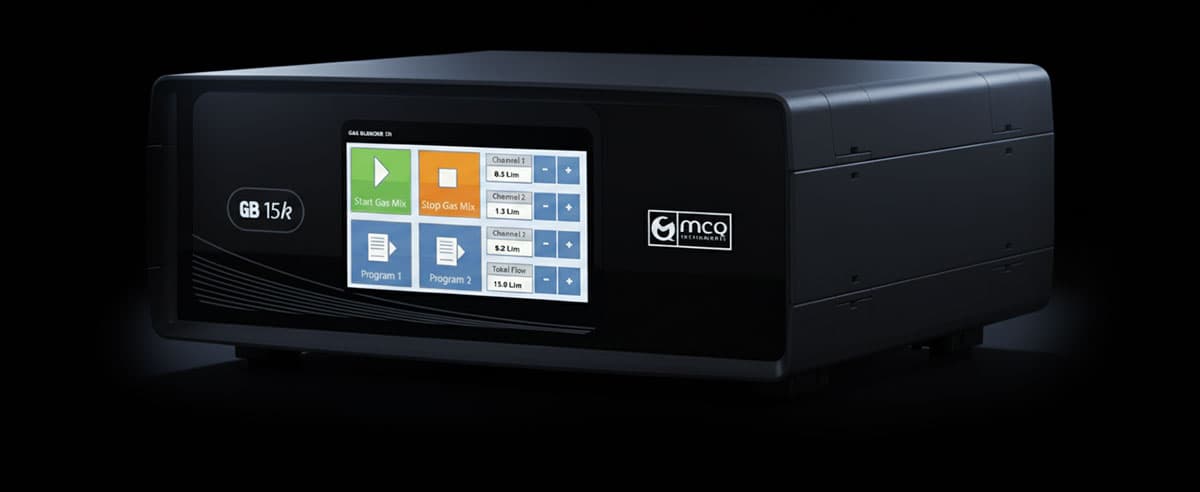

Icon Touch Screen Gas Mixture Creator
Touch Display.

In addition to our Gas Mixture Creator PC software, the GB 15k comes with a user-friendly resistive touch display that simplifies the creation and management of Gas Mixtures. With just a few clicks, the process can be easily automated without requiring the use of a computer.

Icon Integration
Easy Integration.

ProfiBus, ModBus, Matlab Simulink compatible and USB, Bluetooth, WiFI and RS485 Bus ready to use. Python Library supplied.

Icon Certified Gas Mixer
Certified Devices and Gas Mixtures.

Our Gas Mixers hold CE, TUV, and cTUVUS certifications, ensuring their quality and safety. Moreover, the gas mixtures produced by our Devices will be ISO 6145 certified (coming soon), providing reliable and accurate results.

SPECIFICATIONS / DATASHEET
Accuracy: (for each channel)

N2, 20 ºC, 101.325 kPa (1 atm):
0,1-100% / FS: 2% of FS

Repeatability:

0,20% of reading

Response time: (for each channel)

>3% FS: 3000 ms

Power Supply:

In Bundle

Operation Pressure:

Max 5 bar

Working Temperature:

0 – 50 °C

Mass Flow Rates: (for each channel)

0 – 15000 mL/min (standard)

Total Mixture Flow Rate:

Up to 45 L/min

Gases:

N2, O2, CO2, CH4, Air, He, H2 (additional gases supported on request)

Compatibility:

Profibus, Modbus, Matlab Simulink, Python Library

Communication:

RS485 with open proprietary protocol.

Fittings:

It depends from the applications.

Inlet Gas Channel:

3 Inputs

Outlet Gas Channel:

1 Output of mixed gases

User Interface:

Gas mixing software. Resistive Touch Display

Certifications:

CE, TUV, cTUVUS, Made in Italy

DOWNLOADS
VIDEOS

CREATE DYNAMIC GAS MIXTURES

Gas Mixer for Laboratory. A lab in a Box.
Experience the freedom of creating and controlling your own Gas Mixtures in only a few steps.

Gas Mixer - Frequently Asked Question

ANSWERS TO COMMON QUESTIONS

Check out our FAQ page

Dynamic Gas Mixer

FROM STATIC
TO DYNAMIC

Pre-mixed Gas Cylinders are notoriously expensive and limiting.
With our devices, it is possible to create dynamic gas mixtures.

Gas Mixer - Industrial Rack

INDUSTRIAL MOUNT RACK

Easy integration of the gas mixer in an industrial application.
Modular approach for a multi-functional system.

Gas Mixer with Automation

FULLY AUTOMATE
EASY TO USE

Our stand-alone software and touch display allow full control.
With ease and automation.

Gas Mixer - Top Performances

RESISTIVE TOUCH DISPLAY

Manage all the parameters with latex or work gloves.

Certification - Gas Mixer

CERTIFIED
GAS MIXTURES

Gas Mixtures certified ISO 6145 (Soon)

Gas Mixer - Integration

EASY INTEGRATION

ProfiBus, ModBus, Matlab Simulink compatible.
USB, Bluetooth, WiFI, and RS485 Bus ready to use.
A Python Library is supplied too.
