Gas Mixer for Gas Sensor Calibration Testing and Development

Gas Sensors: calibration, testing, and development.

Monitoring ambient conditions is a fundamental feature providing valuable data for both research and production applications. Any basic or advanced experimentation, any standard or crucial step in a production process demands fine control over working conditions, thus implying the need for a proper monitoring apparatus.

Along with temperature and pressure, the ability to check the atmosphere composition becomes relevant, since the presence, absence, or simply the amount of modification of the gas species can strongly affect the final result. For that reason, gas sensors are today a part of the essential equipment of many research labs and production facilities, as well as common safety devices for residential buildings. Measurement devices like gas sensors require regular maintenance to check and secure proper functioning.

Standard procedures usually involve testing and re-calibration of the sensors, for which working atmospheres with the specific composition are needed. Creation, control, and management of custom gas mixtures can be easily achieved with the new MCQ professional instruments: the Gas Blenders Series.

The Gas Blenders are also versatile tools for the creation of brand-new gas sensors. The instruments are the optimal choices for developing gas sensors dedicated to applications with specific ambient measurement requirements, for which standard sensors commercially available are not suitable.

Gas Sensors.

There are many types of gas sensors commercially available, built for different purposes and designed for specific applications. Gas sensors can be divided into two main families, electrochemical or spectroscopic, accordingly to their working principle. Electrochemical sensors (based on semiconductors’ properties to change their resistivity when in contact with various substances) are commonly used for gas identification and related amount measurement.

Spectroscopic sensors (based on the molecules’ infrared absorption spectra) are generally used for gas traces detection. Gas sensors are precision instruments whose quality and reliability are defined by specific parameters, like sensitivity, accuracy, and response time. Some parameters depend on the sensor’s nature and remain constant for the whole instrument’s working lifetime, while others can incur slight changes potentially affecting the sensor performances (aging). Sensor accuracy is a typical example of a parameter naturally affected by simple sensor usage.

Regular maintenance is required to secure the right functioning of the instrument thus a periodic calibration is scheduled during the lifetime of any gas sensor.

Calibration.

The calibration of the majority of commercial gas sensors can be executed by the product supplier or by the user. A calibration performed by the supplier requires a standard fee, to which the shipping cost of the sensor must be added. If the sensor cannot be shipped or requires a specific calibration in situ, an operator actually performing the calibration is required and the related cost must be taken into account.

A calibration executed by the user does not involve any fee but requires the purchase of a calibration kit appositely created for the management of the sensor.

• Standard method (Without MCQ Instruments)

The standard calibration method involves two steps: setting the “zero” reading (offset) and calibrating the span. The “zero” reading refers to the ideal condition in which the sensor’s target molecule is totally absent (e.g. pure nitrogen atmosphere for an oxygen sensor), while the span calibration requires a controlled atmosphere with a fixed rate of sensor’s target molecule (e.g. flowing standard air with 20,9% O2 for an oxygen sensor).

Standard calibration kits allow the user to simulate the “zero” reading condition flowing inert gas to the sensor (providing a proper pure gas can) or alternatively setting the reading in the vacuum (providing vacuum pump and related equipment). For the span calibration, standard kits also provide a gas can containing a premixed atmosphere to be flown to the sensor.

Using premixed atmosphere cans is the fastest and easiest way to perform a standard calibration. This method, however, suffers two major downsides:

• Accurate calibrations require more than 1 point for the span regulation, thus an expansive set of gas cans, each containing a different atmosphere, is needed.

• Calibration of custom gas sensors may require specific atmospheres not commercially available.

The MCQ Instruments solution.

MCQ Instruments has developed a new series of products to overcome these problems: the Gas Blenders. These Gas Mixers have been specifically designed for applications requiring custom gas sensors. The Gas Blenders are professional gas mixers, up to 6 channels, with high precision (1% accuracy for each channel) and high repeatability (0,16% of reading value).

The Gas Blenders replace the use of costly premixed gas cans, allowing the user to work with significantly cheaper cans of pure gases which are mixed by the instruments to create custom atmospheres fully adjustable. The possibility to instantly change components concentration in the working atmosphere, with a 0,1%-100% range for each channel, gives Gas Blenders great versatility, making them the ideal instrument for standard or advanced calibration of custom and commercially available gas sensors.

Sensor Development.

Development and testing of brand-new gas sensors is another important application field for which the Gas Blenders Series has been created. The up to 6 channels of the gas blenders are calibrated by MCQ Instruments following the customer request but through standard conversion factors, the Gas Mixers can be set to work with a wide range of different gasses. Compared with other common Mass Flow Controllers, the MCQ Gas Blender’s efficiency allows performing immediate atmosphere composition changes which are fundamental to checking the gas sensors’ response time and other quality-defining parameters.

• Response Time

The sensor response time (RT) is especially important in many applications, since chemical and physical processes, reactions, small changes, or variations often occur in a fraction of a second. In order to check and verify them, the use of sensors with adequate sensibility and fast RT is mandatory.

Experimental scenario:

• The working system is surrounded by a specific atmosphere, constantly monitored with one or more gas sensors.

• The system, naturally or artificially, incurs in a short-time event that alters the mixture composition of 400 ms.

• After 400 ms, the system’s conditions are fully restored to their starting values.

• If the sensors‘ response time is comparable or even higher than 400 ms, the event that caused the variation cannot be detected. The related data are lost.

• In order to measure the variation within the system, the sensors’ response time must be significantly lower than the variation’s length. With a sensor’s RT of 100 ms, the event’s related data can be collected.

The development of fast response sensors requires, in turn, an instrument capable of even higher performances. Being able to match and surpass the response speed of the majority of the gas sensors is fundamental for collecting valuable data that otherwise would be lost due to poor instrumentation performances. While standard MFCs (Mass Flow Controllers) hardly offer a response time lower than 350 ms, the Gas Blenders Series combines their great accuracy, currently the fastest available on the market. This feature is definitely an excellent tool to verify and improve a custom sensor’s quality and performance.

Compactness and Simplicity.

The Gas Blenders Series combines high precision and great reliability with two other important features: extreme compactness, which makes it suitable for any positioning and transport demands, and great simplicity of use.

• Lab in a box.

The Gas Blender has been designed with the “Lab in a Box” principle in order to adapt the instrument to any lab needs concerning the working space. MCQ Instruments has replaced the standard bulky configuration of 6 Mass Flow Controllers connected with an external power source with a small, practical, and easy manageable product, ideal for installation in narrow spaces or under chemical hoods.

• User Interface.

All the Gas Blenders parameters and functions can be easily controlled by the user with the MCQ Gas Mixture Creator Software, provided with the gas mixers. The SOFTWARE is a fully automated, fast, and intuitive tool for Gas Blenders management, Gas Flow Meter Control, and Configuration, which only requires a desktop or laptop computer with any Windows operating system starting from Windows XP.  (or touch screen for the latest products)

Hardware configuration.

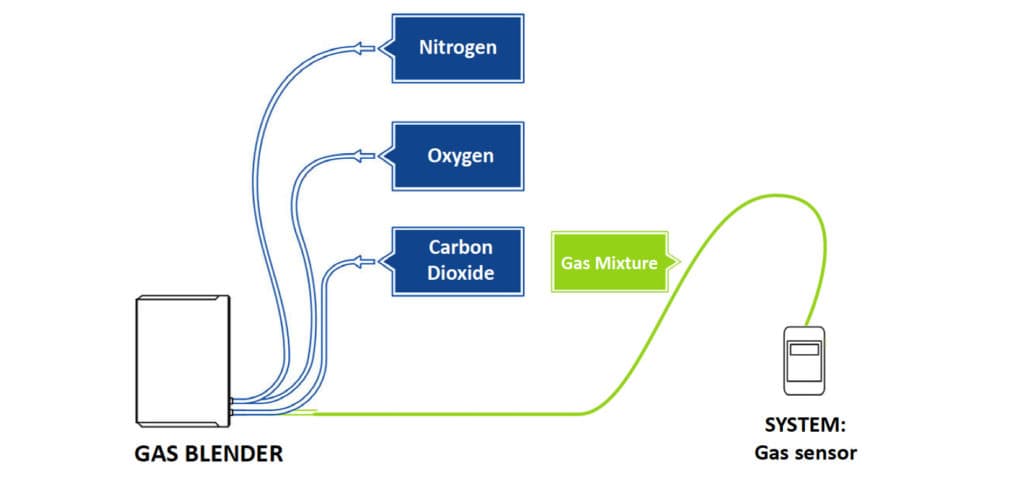

The image represents an example of the standard hardware configuration required to calibrate a gas sensor with the MCQ Gas Blenders. The instruments work with dry, non-aggressive gases only. The gas sources can be both pure or mixtures (in our example pure gases have been chosen for simplicity).

The gas cylinders are connected to the instruments through 6 mm diameter tubes and a check valve is installed on each line as back-flow prevention devices. Each gas media is connected and controlled by a dedicated channel of the Gas Blenders. Another 6 mm tube connects the instruments to the gas sensor through a specific connector, designed to isolate the sensor from the external environment.

For certain applications, the zero can be set using the atmosphere that normally surrounds the sensor but for the determination of the other calibration points, the use of the connector is mandatory. A laptop or desktop computer controls the Gas Blenders through a simple USB connection.

All the instruments’ features and the gas mixture properties can then be managed with the software.

Choose your Gas Mixer.

Easy to Use, automated, flexible, multi-gas types. Start creating your dynamic Gas Mixtures by just using pure gases.

GB100

Total Flow Rate: Up to 1,5 L/min
