GAS MIXER 100

MICRO FLOW RATES

UP TO 3 INPUT CHANNELS
EACH CHANNEL FLOW RATE: 0,5 – 500 mL/min
TOTAL MIXTURE FLOW RATE: up to 1500 mL/min

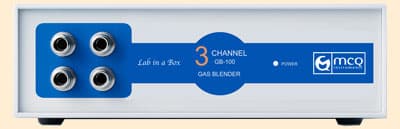

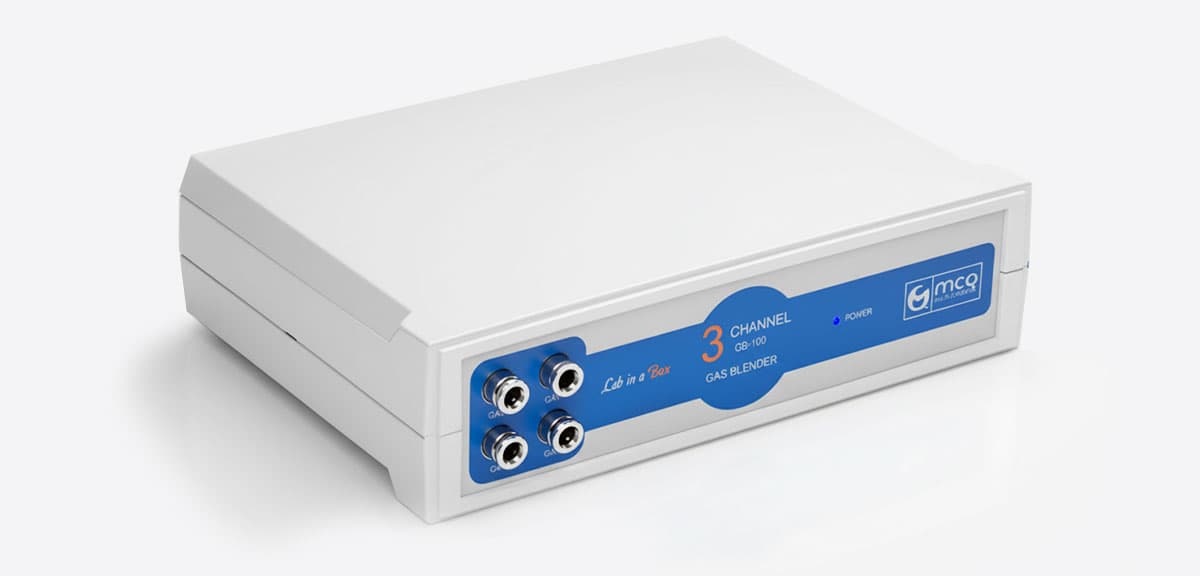

Gas Mixer GB 100
DESCRIPTION

The MCQ GB100 is a compact Gas Mixer specifically designed for laboratories by MCQ Instruments. A powerful tool for managing and controlling MICRO FLOWS for gas mixing and gas dilution processes. Easy to install, set, and use, it is the fastest instrument on the market.

MAIN BENEFITS
Icon System
Ready-to-Use System.

Unlike mass flow controllers that function as components needing integration, the Gas Mixer is a complete, ready-to-use system.
It comes in a compact box with software, tubing, and pre-configured settings. No more dealing with multiple devices; the Gas Mixer provides all necessary features in one.

Icon Percentage
Percentage-Based Operation.

Gas Mixers operate in percentages, not just in flow rates.
Operators only need to set the total flow required and the percentage of each gas. The Gas Mixer then automatically calculates the flow for each channel. This eliminates the need for complex spreadsheets, making the process more user-friendly with just a few clicks.

Icon Pre-Mixed Gas Cylinder
Better solution than Pre-Mixed Gas Cylinders.

Our Gas Mixers offer a superior alternative to pre-mixed gas cylinders. Our devices create custom gas mixtures in real-time using pure gases, simplifying the storage and shipping process while reducing costs. Furthermore, there are no limitations on the combination or ratio of gas mixtures that can be generated.

Icon Mass Flow Controller
Better solution than Mass Flow Controllers.

A regular mass flow controller is completely inadeguate to measure and regulate small ratios keeping at same moment a stable flow. Comparing our Gas Mixer with a Mass Flow Controller reveals some significant advantages.
• Firstly, our instruments have no cut-off compared to the 10% cut-off of the Mass Flow Controller.
• Secondly, our instruments have a 0.1% minimum setpoint value, which is much lower than the 1% of the Mass Flow Controller.
• Additionally, our dilution ratio is 1:1000, which is much higher than the 1:10 ratio of the Mass Flow Controller.
• Finally, our calibration curve has 18 calibration points, while the Mass Flow Controller has only 5 calibration points.

Icon Gas Mixer for Laboratory
A Gas Mixer for Life Science Studies.

Our Gas Mixers are specifically designed to help laboratories achieve the best results in terms of accuracy, modularity, and process speed, while using only a small amount of space in the environment.

Icon Laboratory in a Box
A Lab in a Box.

MCQ Instruments devices provide a complete laboratory experience in a single, ready-to-use box. Unlike traditional systems that require a complex tube system, external power supply, and significant space and budget considerations, our devices eliminate these additional requirements.

Icon Software Gas Mixture Creator
Software included.

MCQ Instruments provides bundled software with all of its devices for full automation. Our instruments are designed to control every parameter, from the individual components of a gas mixture to the management of the entire process.

Icon Gas Mixer Easy to Use
No specific skills are required.

Gas Blender 100 is an easy to use and FULLY AUTOMATED Gas Mixer. No specific skills are required to start creating your Gas Mixtures. Fast, stable, accurate, provided with an intuitive software. It assures top performances even when managing low flow rates.

Icon Certified Gas Mixer
Certified Devices and Gas Mixtures.

Our Gas Mixers hold CE, TUV, and cTUVUS certifications, ensuring their quality and safety. Moreover, the gas mixtures produced by our Devices will be ISO 6145 certified (coming soon), providing reliable and accurate results.

SPECIFICATIONS / DATASHEET
Accuracy: (for each channel)

N2, 20 ºC, 101.325 kPa (1 atm):
5-100% FS: 1% of SP
< 5% FS: 0,2% of FS

Repeatability:

0,16% of reading

Response time: (for each channel)

50 ms

Power Supply:

16-36 V DC – Min. 1,5 A

Operation Pressure:

Max 25 psi

Working Temperature:

0 – 50 °C

Mass Flow Rates: (for each channel)

0,5 – 500 mL/min on N2 (Standard)

Total Mixture Flow Rate:

Up to 1500 mL/min

Gases:

N2, O2, CO2, CH4, Air, (additional gases supported on request)

Communication:

USB PC Interface, BUS RS 485 (*). Connect up to 64 Gas Blenders to obtain different mixing and blending solutions. (*) Function for future use. At the moment not active.

Fittings:

Push-in fittings for 6-4 mm tubes. Other on request

Inlet Gas Channel:

3 Inputs

Outlet Gas Channel:

1 Output of mixed gases

User Interface:

Gas mixing software.
1 LED signal interface

Certifications:

CE, TUV, cTUVUS, Made in Italy
