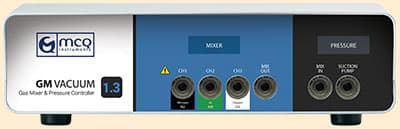

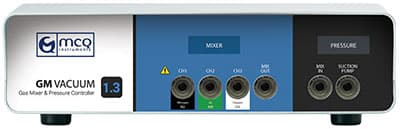

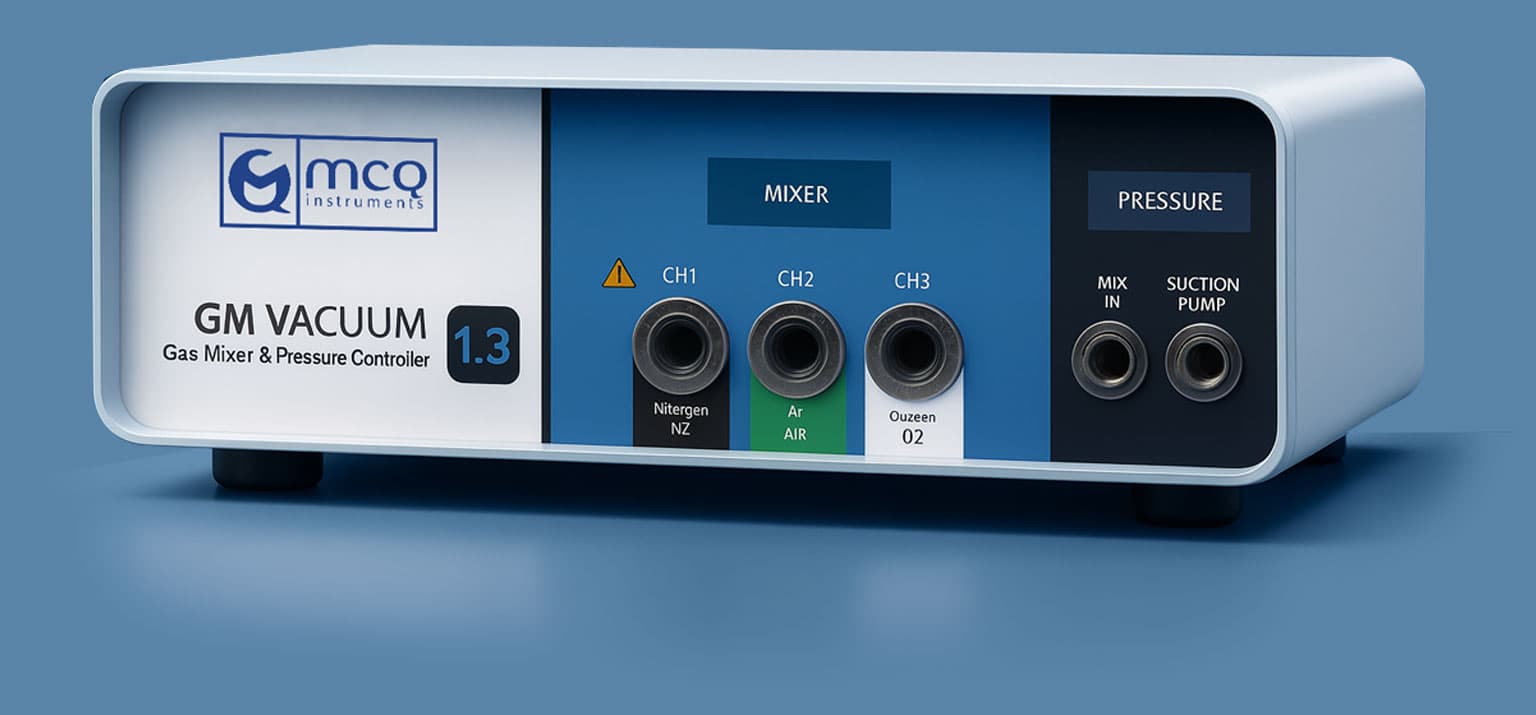

GAS MIXER & PRESSURE CONTROLLER

GM VACUUM SERIES

UP TO 3 INPUT CHANNELS
EACH CHANNEL FLOW RATE: 0,2 – 200 mL/min
TOTAL MIXTURE FLOW RATE: up to 600 mL/min

DESCRIPTION

GM Vacuum is the ideal device for Gas Blending and Pressure Control technology. This all-inclusive solution is ready-to-use for innovative creation, management, measurement, and control of gas mixtures and dilutions at low and micro flow rates, making it an ideal companion for spectrometry studies.
It guarantees top-tier quality, exceptional precision, full automation, and intuitive operation. Experience the synergy of gas mixing and pressure control in a single, trusted technology.

MAIN BENEFITS
Compact and Versatile
High Level of COMPACTNESS AND VERSATILITY.

The problem of achieving accurate gas mixing and pressure control of the generated gas sample has always required bulky instrumentation and constant monitoring with manual adjustments.
In this context, GM Vacuum integrates a gas mixer, and a pressure controller into a single, compact unit, offering an efficient all-in-one solution for automated generation and precise pressure control of mixtures.
*Pump is not included.

Gas Sampling
The Ultimate Solution for Characterization of Gas Samples.

GM Vacuum creates gas mixtures up to 600 ml/min with the possibility to automatically control pressure in sample volume up to 1L with a time response <10s for different operating pressure values.
The versatility of the components allows, for a setpoint pressure value (in the range 10 Torr – 1200 Torr), stabilization and the modularity of the mass flow controllers allows dedicating specific channels to different class of molecules, such as light molecules, i.e., H2, He.

Gas Cells
Adaptable to Different Gas Cells.

Our innovative GM Vacuum is designed to provide unparalleled adaptability, particularly when it comes to different gas cell setups. With its advanced features and flexible configuration options, our device ensures precise gas mixing and pressure control to meet your specific requirements.

Icon Laboratory in a Box
Compact and Zero Waste Space.

Say goodbye to wasted space and hello to efficiency with our compact GM Vacuum.
Designed with optimization in mind, our product eliminates the need for bulky equipment, ensuring every inch of your workspace is put to good use.
By integrating multiple features into a single device, we have revolutionized gas mixing and pressure control, streamlining your setup and minimizing wasted resources.

Icon Gas Mixer Easy to Use
Automated Feedback System.

With GM Vacuum, you can create, save and load your automatic mixture program, set the percentage of each channel, the total flow of the gas mixture and process duration.
The program code can be edited anytime, exported to an external file and reloaded later.

Icon Percentage
Percentage-Based Operation.

Gas Mixers operate in percentages, not just in flow rates.
Operators only need to set the total flow required and the percentage of each gas. The Gas Mixer then automatically calculates the flow for each channel. This eliminates the need for complex spreadsheets, making the process more user-friendly with just a few clicks.

Icon Software Gas Mixture Creator

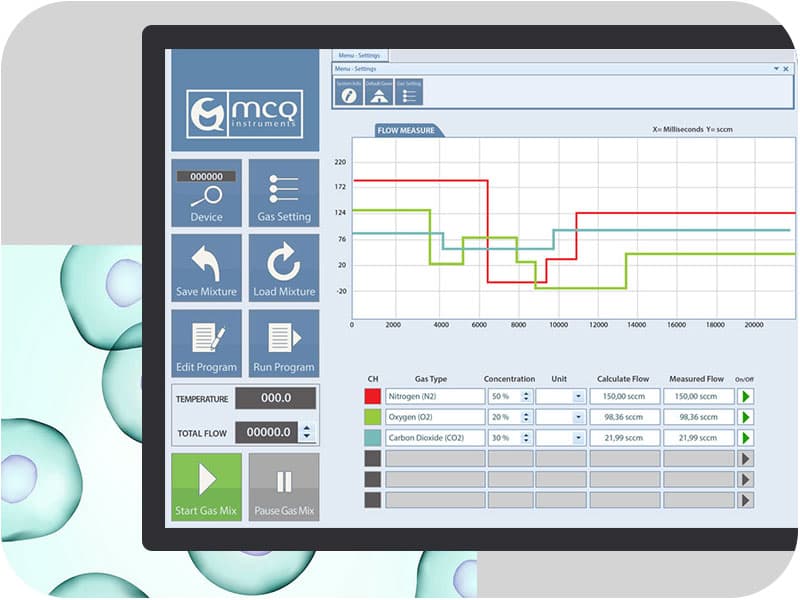

PC Software included.

To control the instrument via PC, we also provide a software that allows direct access to all the parameters of our device for managing the gas mixing process and the pressure controller too.
Thanks to a user-friendly interface, you can easily control and manage several of the most important required actions with a few clicks.

Easy to Transport and Deploy
Easy to Transport and Deploy.

GM Vacuum not only offers exceptional functionality but also boasts ease of transportation and deployment. With its compact and lightweight design, our product is specifically engineered for being moved to different locations without any hassle. Whether you need to set up your applications, our device ensures a swift deployment.

Icon Integration
Easy Integration.

ProfiBus, ModBus, Matlab Simulink compatible and USB, Bluetooth, WiFI and RS485 Bus ready to use. Python Library supplied.

SPECIFICATIONS / DATASHEET
GAS MIXER – SPECIFICATIONS
Accuracy: (for each channel)

N2, 20 ºC, 101.325 kPa (1 atm):
5-100% FS: 1% of SP
< 5% FS: 0,2% of FS

Repeatability:

0,10% of reading

Response time: (for each channel)

100 ms

Power Supply:

In Bundle

Operation Pressure:

Max 3 bar

Working Temperature:

0 – 50 °C

Mass Flow Rates: (for each channel)

0,2 – 200 mL/min on N2 (Standard)

Total Mixture Flow Rate:

Up to 600 mL/min

Gases:

N2, O2, CO2, CH4, Air, He, H2 (additional gases supported on request)

Compatibility:

Profibus, Modbus, Matlab Simulink, Python Library

Communication:

USB PC Interface RS485 with open proprietary protocol.

Fittings:

Swagelok NPT or Push-in fittings for 6-4mm tubes. Other on request.

Inlet Gas Channel:

Up to 3 Inputs

Outlet Gas Channel:

1 Output of mixed gases

User Interface:

Gas mixing software. Touch Display

Certifications:

CE, TUV, cTUVUS, Made in Italy

PRESSURE CONTROLLER – SPECIFICATIONS
Pressure Operating Range:

10 Torr – 1200 Torr

Accuracy:

0,1% of FS

Repeatability:

1 Torr

Response Time:

~3s for ΔP = 50 Torr at a 30 sccm flow rate
for a 10 mL sample volume

Volume Controlled:

Up to 1L

Pump:

Not Included
