Gas Mixer for Fungi Cultures Studies

Effects of modified atmospheres on lab-grown fungi cultures.

Fungi is a term that refers to a large family of organisms (mushrooms, yeasts, molds, etc..), which counts more than 1.5 million species on Earth. Fungi have a strong link with most terrestrial (and some aquatic) ecosystems. Fungi act as a major decomposer, degrading organic matter to inorganic molecules which are re-integrated in the biochemical cycles through assimilation by plants or other organisms.

The human use of fungi is a practice rooted in the past which is currently extremely extensive. Food-related applications are one of the major examples, of mushroom farming and gathering, representing a large industry in many countries. New, interesting application fields have been discovered through the years, all of them connected with the capacity of fungi to produce a wide range of products with important biological properties.

Nowadays a large share of industrial production of antibiotics, vitamins, and anti-cancer cholesterol-lowering drugs relies on cultured fungi.

The instruments for the gas mixtures management must secure high precision outcomes over the whole experiment duration; high accuracy, great stability, and high repeatability are required.

On the other hand, it’s also important to work with an instrument capable of Productivity, and the quality of fungi cultures strongly depends on growing conditions. Among all the parameters that affect a culture, the surrounding atmosphere composition is one of the most crucial. Fungi are cultured in aerobic or anaerobic conditions, and most recently the use of a modified atmosphere (greatly different from the standard air composition) has been implemented.

For all these reasons, R&D demands professional instruments in order to perform accurate studies on fungi culture, and MCQ Instruments faces these needs with its Gas Blender Series. Highly accurate, reliable, and easy to use, the MCQ Gas Blenders are the ideal instruments to create up to 6 component gas mixtures, control gas flow meters, and manage them dynamically with software automation of creating gas mixtures dynamically adjustable since the variation of the conditions for a particular cell type can result in gene/protein/enzyme expression changes.

For all these applications we propose the use of MCQ Gas Blender 100 Series, an instrument specifically made to work with 3 components gas mixtures that offer a quick and easy way to efficiently manage the experimental condition of your cell culture.

Pharmaceutical applications.

• Natural compounds expression:

Fungi produce a wide array of natural compounds with useful biological activities that are of great interest for pharmaceutical applications. Fungi expression capacity is used for the industrial production of metabolites that are the major source of pharmacologically active drugs. The major example of fungi culture application is the production of antibiotics, especially penicillins.

Although naturally occurring penicillins are known to be good antibiotics, modern penicillins are semisynthetic compounds, structurally altered, through chemical modifications, to obtain products with improved biological activities and specific desirable properties. Currently, there are many drugs produced by fungi, like the immunosuppressant cyclosporin (commonly used during transplant surgery), the fusidic acid, whose main application is bacterial infection control, and the statins, used to inhibit cholesterol synthesis.

The use of fungi-derived compounds is a promising application field, and in the next few years, many new products with cardiovascular, anticancer, antiviral, antibacterial, antiparasitic, anti-inflammatory, and antidiabetic properties are supposed to be refined to become globally available.

Aside from the production of antibiotics and drugs, fungi are also used for the expression of various enzymes particularly useful for industrial processes. Moreover, fungi act efficiently as biological pesticides to control weeds, plant diseases, and insect pests.

• Future base for R&D

The use of natural compounds expressed by mushrooms, yeasts, and molds is not the only promising application of fungi R&D. For pharmaceutical industrial production, fungi don’t have to produce compounds to be useful. Fungi are organisms capable to bring about a variety of chemical transformations in a reliable and reproducible way and therefore can be used in the intermediate steps of compound synthesis.

The production of steroids is a major example of this application. During their manufacturing process, base steroids are transferred in a fungi culture in order to be opportunely transformed. About twenty to forty hours later the newly processed steroids can be extracted. This relatively simple procedure avoids up to thirty steps of pure chemistry, with a direct positive impact on process productivity and production costs. Success with steroid transformation has led to a relevant consideration: fungi can be the base for future pharmaceutical R&D.

Similar approaches can be applied to a wide range of active compounds, to reduce natural toxicity or to enhance biological activity. Using fungi in this way gives the possibility to easily manufacture specific compounds which would be otherwise very difficult and expensive to produce by direct chemical synthesis.

Shelf life enhancement.

Fungi R&D is not only focused on the growth of these organisms but also on their suppression. Acting as decomposers, mushrooms, and molds are the main factor (along with bacteria) that contributes to shortening the shelf-life of stored foods. Mushrooms and molds grow from spores, which are extremely diffused and virtually present (even in a small amount) on the surface of every food.

In stored products, the fungi growth control is then achieved through the inhibition of spores proliferation. Inhibition is obtained by storing products in a modified atmosphere, usually poor in oxygen.

This technique, called Modified Atmosphere Packaging, is currently the most widespread method used to enhance the shelf-life of general goods (more information regarding Modified Atmosphere Packaging and the related MCQ Gas Blender Series applications can be found in the Application menu).

Fungi culture atmosphere.

The composition of the atmosphere surrounding the culture strongly affects the growth rate of fungi. For all the fungi applications previously described, proper optimization of growth/inhibition process parameters is definitely required and represents a research field that modern science is currently focused on.

Fungi are usually grown in the air (standard atmosphere) but, especially in the last 10 years, many studies have proved the crucial influence of modified atmospheres on cultures. Depending on the type of fungi in the study, both high and low oxygen concentrations in the gas phase can be used as a growth-promoting factor. Increasing the CO2 concentration in the culture atmosphere usually involves a growth-suppression effect, detrimental to drug expression but useful for shelf-life enhancement.

The combination of low oxygen (>0,5%) and high CO2 (>15%) is a condition used both to suppress and enhance fungi proliferation, while high oxygen high CO2 atmospheres are less common but still promising.

Gas Mixing: Common Solution. (Without MCQ Instruments)

The standard gas blending solution used for culture application consists of 3 single-channel mass flow controllers (usually calibrated for nitrogen, oxygen, and carbon dioxide), which work independently from each other. All mass flow controllers are connected to an external control unit, used to blend the mixture and to manage the mixture settings (i.e. the relative amount of each compound in the gaseous phase).

This standard hardware configuration demands a considerable amount of laboratory space, resulting inappropriate in case of installation under fume hoods, and the mixture parameters changes are often laborious, making it almost impossible to work with culture conditions that require dynamic mixture adjustments.

The MCQ Instruments solution.

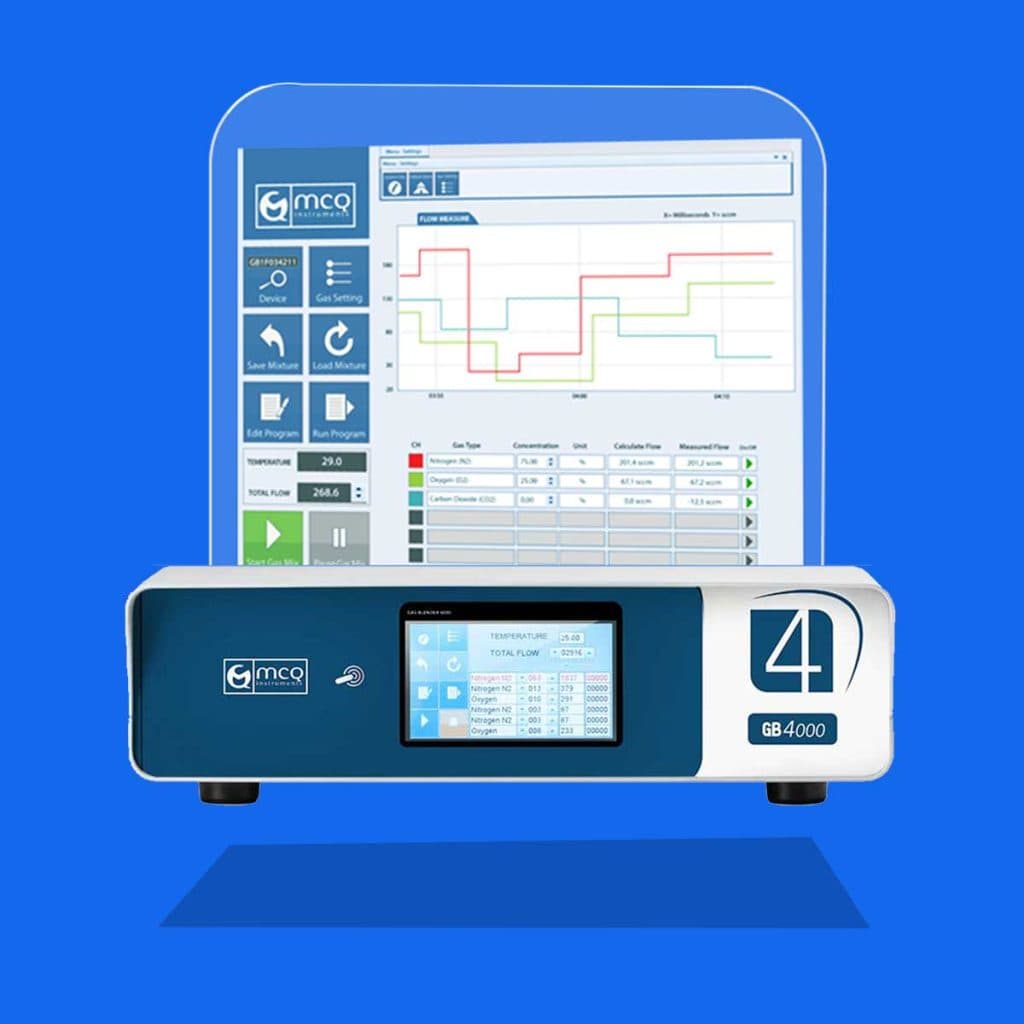

The MCQ Instruments solution for gas mixing applications is the MCQ Gas Blender Series. The Gas Blender Series are professional Gas Mixers designed for high precision up to 6 components mixture blending. The MCQ Instruments ensures a precision of 1% of the setpoint, a repeatability of 0,16% of the reading value, and a 50 ms (500 ms for Gas Blender 2-3-4-6000 Series) response time for setpoint changes (currently the fastest on the market).

The Gas Blender Series requires no external control unit, for all the mixture parameters, gas flow meter control, and other gas settings can be managed by the user with the MCQ Gas Mixture Creator Software, the SOFTWARE specifically created to access all the Gas Mixer features. The software only requires a desktop or a laptop computer compatible with any Windows operating system starting from Windows XP (or touch screen for the latest products).

• Hardware Configuration

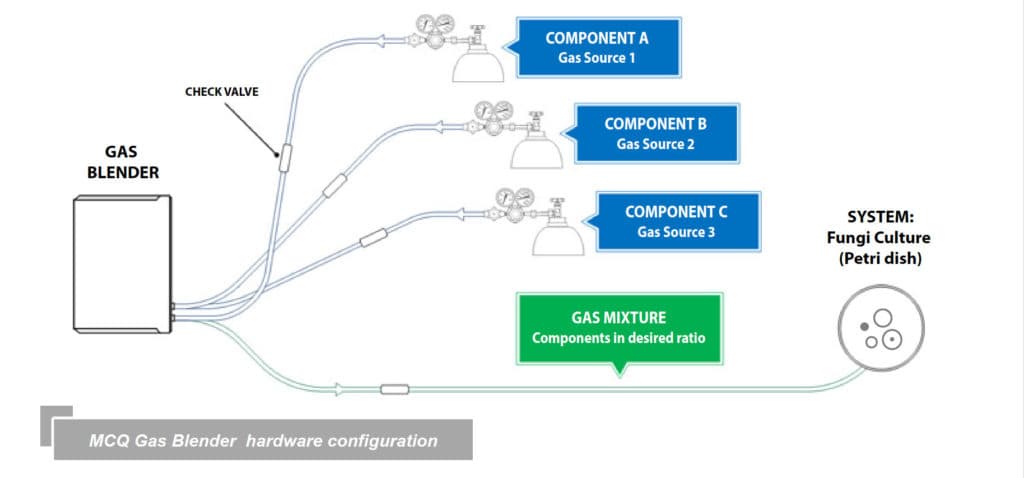

An example of MCQ Gas Blender Series hardware configuration is represented in the image below. The gas mixer works with dry, non-aggressive gases. The gas sources can be both pure or mixtures (in our example pure gases have been chosen for simplicity).

The gas cylinders are connected to the instrument through 6 mm diameter tubes and a check valve is installed on each line as a back-flow prevention device. Each gas media is connected and controlled by a dedicated channel of the Gas Blender. Another 6 mm tube finally connects the gas mixer to the working system in which the experiment takes place. A PC is connected to the Gas Blender through a simple USB connection.

All the instruments’ features and the gas mixture properties can then be managed with the Gas Mixture Creator Software with full automation.

Choose your Gas Mixer.

Easy to Use, automated, flexible, multi-gas types. Start creating your dynamic Gas Mixtures by just using pure gases.

GB100

Total Flow Rate: Up to 1,5 L/min
