FEEDBACK CONTROL

TECHNOLOGY

AUTOMATED MONITORING OF A GAS MIXING SYSTEM

Feedback Control Technology
DESCRIPTION

Thanks to our Feedback Control Technology, you are able to modify and monitor the percentages of single components into a gas mixture while flows into a chamber, bioreactor, or incubator, with a feedback in a closed loop control. All of it, with full automation.
The Feedback Control could be provided by an Analyzer at the end of the process that measures the atmosphere inside the chamber or it could be provided by a Sensor inside the chamber, bioreactor, or incubator.

DOWNLOADS
VIDEOS

OUR LATEST, REVOLUTIONARY INNOVATION

Gas System. Experience total freedom in changing parameters with full automation.

Feedback Loop - MCQ Instruments Gas Mixing

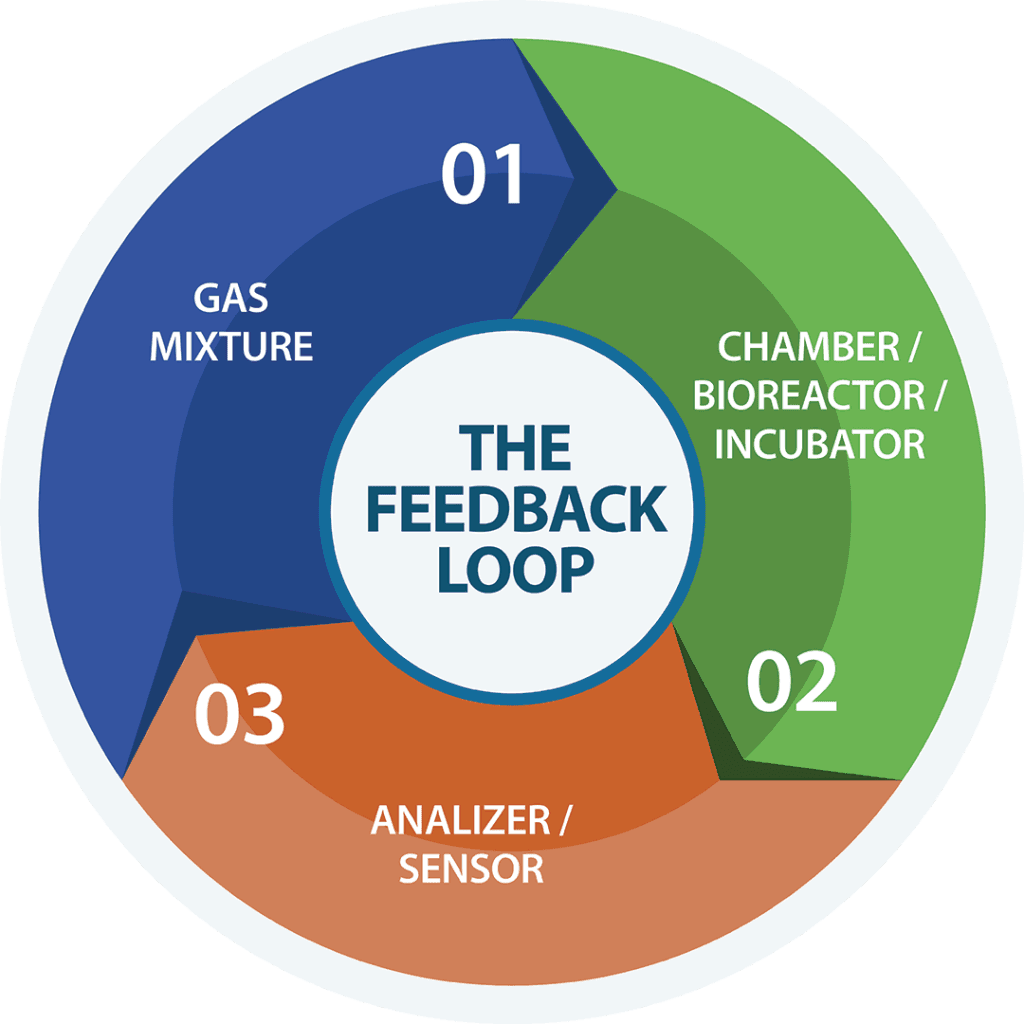

THE LOOP

BENEFITS

Our full AUTOMATION of the processes will allow you continuous monitoring, with everything it implies: cost saving, efficiency, lesser chance of errors, continuous process monitoring, big time saving of the experiment, automation, and much more.
The Chamber, Bioreactor, or Incubator may contain cell cultures or must or anything else that can be employed in life science, biotechnologies, pharmaceutical or studying food and beverages, or much more.
It is a completely NEW solution on the market ready for your laboratory.

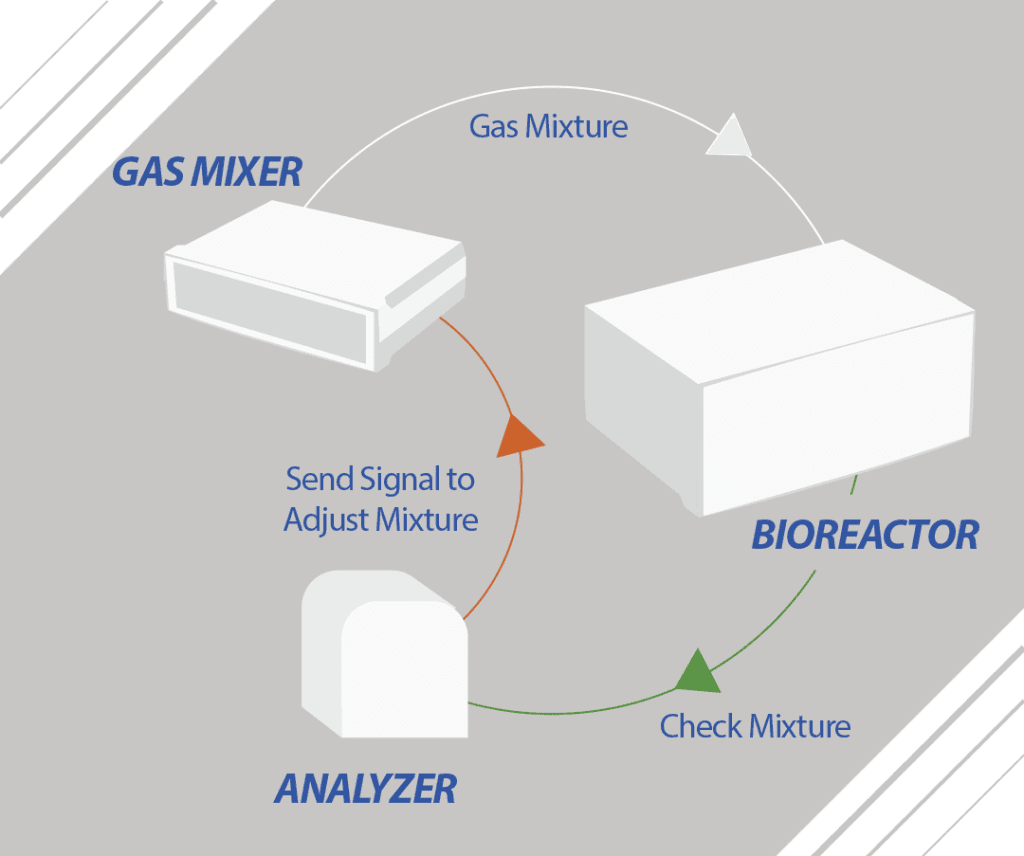

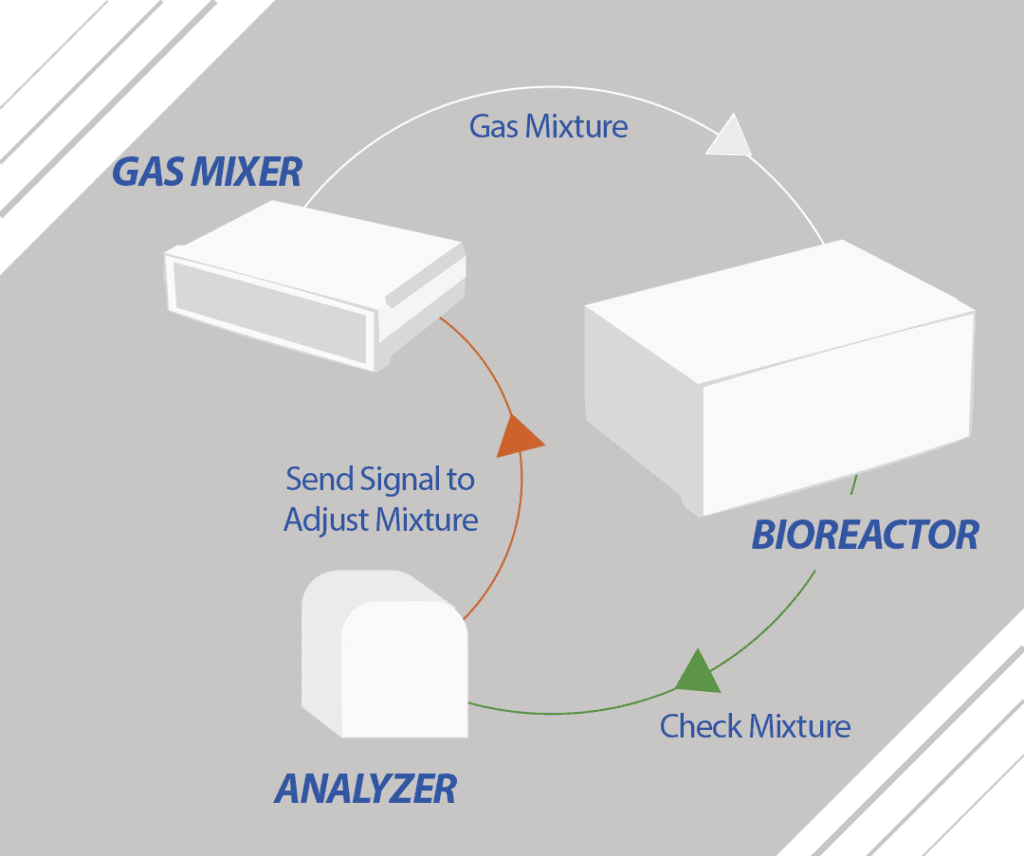

GAS SYSTEM – CASE 1

GAS MIXER + BIOREACTOR + ANALYZER

This is the case when our Gas Mixer injects the gas mixture inside a Bioreactor. Then the Analyzer can read the result and our instrument is now able to check if the result is optimal, so it means anything changes.
But if any parameter varies in a negative condition for your needs, a signal is sent with a Digital Feedback Control to the Gas Mixer which adapts itself changing the percentages of the components of the gas mixture in an absolutely automated way.

Feedback Control - Case 1c
Feedback Control - Case 2c

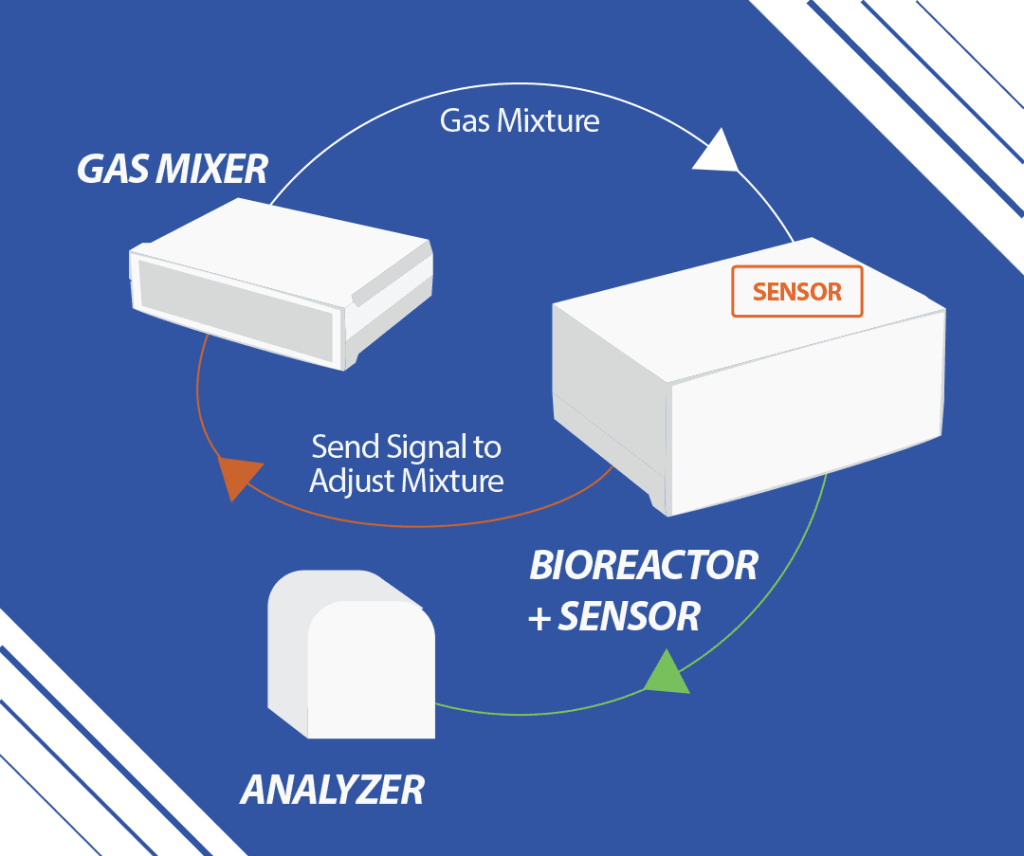

GAS SYSTEM – CASE 2

GAS MIXER + BIOREACTOR / SENSOR + ANALYZER

This is the case when we create a system that allows us to constantly monitor a whole process that otherwise would be brought forward using an obsolete BATCH SYSTEM.
OLD SOLUTION: The Gas Mixer injects a gas mixture inside a Bioreactor, that will be then detached and closed for the proper time that the reaction needs. It will be NOT possible to monitor the process during the required time. With the consequence that the result of the reaction can reserve too many unexpected surprises after several days.
THE MCQ INSTRUMENTS SOLUTION: Inserting a Sensor inside the Bioreactor, we are now able to constantly monitor the whole process and, if it is degenerating towards unacceptable parameters, we can adjust the gas mixture and restore the correct atmosphere, in a full AUTOMATION.
