Gas Mixer for CA MAP Fumigation

Table grapes postharvest decay control with CA/MAP/Fumigation.

Fresh grapes arrive daily on our tables. A habit we usually take for granted and think is easy to achieve is indeed the last step of the complex harvest and storage procedure, involving more than meets the eye. The major issue that threatens product quality is gray mold, (aka Botrytis Cinerea), the most economically important postharvest disease of table grapes.

Gray mold can be especially troublesome for its vigorous growth rate and ability to spread among berries even at low temperatures (–0.5°C). A single infected berry escaped from removal during packaging and can affect the majority of the product almost simultaneously, but sometimes the infection can originate simply from spores on the berries surface or from latent infections that occurred before harvest, during the growing season.

Whatever the reason, control of postharvest decay and prevention of quality losses actually represents one of the most challenging goals for table grapes large-scale retail trade, essentially to achieve to satisfy customer needs. The control of decay and preservation of the quality of table grapes during storage are complex issues because of the interplay among effectiveness, phytotoxicity, physiological compatibility, acceptability, simplicity of use, and cost.

The huge amount of research papers published so far, each of them presenting many different solutions, is solid proof of the actual interest in developing an effective method for grey mold control. While practically all researchers point to the same “what”, suppression of B. Cinerea growth, what characterizes one method from the other, is “how”.

Controlled Atmosphere.

Controlled atmosphere (CA) storage is a well-established technology that is used to preserve the quality of fruit by active manipulation of atmospheric composition in storage rooms, transport containers, or retail food packages. CA are created by altering oxygen (O2) and carbon dioxide (CO2) relative amounts, thus creating a less suitable atmosphere for molds and fungi to grow in.

• Advantages: Versatility. Any desired combination of O2 and CO2 can be used to protect the product from physiological or pathological disorders.

• Disadvantages: Flavor Table grapes’ taste can be compromised after many days of storage in CO2-enriched atmospheres.

Modified Atmosphere Packaging.

Modified Atmosphere Packaging (MAP) shares the same growth suppression principle of CA, using altered atmospheres usually rich in CO2 and poor in O2 for postharvest decay control. MAP focuses on closed packaging, putting food in contact with atmospheres radically different from breathable air, often using hazardous gases such as carbon monoxide (CO) as the main infection suppressor.

• Advantages: Versatility. A large spectrum of commercial gases can be used as a component of the MAP, allowing this technology to produce satisfactory results for a great variety of products.

• Disadvantages: Sealed packaging. The strong point of MAP is also its main weakness. Since the products are completely sealed from the outside, accumulation of condensation and respiratory water can occur during storage, which in turn can increase decay caused by B. cinerea. For the table, grapes MAP represents a viable option only when combined with another method of active protection against decay before or during storage. One of them is the sulfur dioxide fumigation.

SO2 fumigation.

Fumigation with sulfur dioxide (SO2) is probably the most practical, economically viable, and efficient method to preserve fruit quality. Grapes are usually fumigated (i.e. put in contact with a modified atmosphere for a certain period of time) with SO2 immediately before or after packing and are re-fumigated at weekly intervals, monitoring the total amount of sulfur dioxide dosed.

It has been demonstrated that the amount of SO2 gas needed to kill Botrytis spores is dependent on the concentration and the length of time the fungus is exposed to the fumigant. In addition to direct exposure, SO2 can be locally generated with sulfur dioxide generator sheets.

The sheets, which contain sodium metabisulphite, are placed within grape packages. Later, when hydrated by water vapor, they continuously emit a low concentration of SO2 during storage. Low temperature (-0,5°C) and SO2 fumigation combined can protect the grapes from decay for months.

• Advantages: Handling & high effectiveness/cost ratio. The ease of handling and the good results obtained with relatively low SO2 concentration make this technique extremely common among table grapes large-scale producers. Many kinds of berries show a tolerance towards sulfur dioxide in concentrations that would damage other fruits, vegetables, eggs, meat, or poultry.

• Disadvantages: SO2 poisoning. Sulfur dioxide tends to react with water to produce sulfites, which accumulate inside the grapes. Ingestion of fruits with a high quantity of sulfates can cause hypersensitive reactions in some people, which leads the United States Environmental Protection Agency to declare SO2 as a pesticide when in a concentration above 10 ppm. Moreover, even if the fumigation is properly controlled, excessive residues of SO2 can still be found in wounded or detached berries, compromising the taste as well.

SO2 fumigation.

Ozone is a natural substance in the atmosphere and one of the most potent sanitizers known against a wide spectrum of microorganisms at relatively low concentrations. Ozone strongly interacts with other molecules due to its decomposition products (radicals) which are highly reactive and tend to crack and/or oxidize other substances and micro-organisms as well. Its reactivity leads ozone to be tested as an alternative fumigant for postharvest decay control, and many studies proved O3 is capable of good performance in certain kinds of fungi and mold suppression.

• Advantages: Low concentration & No byproducts. Ozone is chemically less troublesome than SO2 (there is no accumulation of potentially dangerous byproducts) and the optimal working concentration of O3 is extremely low, with a concentration that usually goes from 0,1 up to 500 ppm.

• Disadvantages: Handling & Selectivity. The use of ozone can be less appealing, mostly due to its complicated handling. Ozone is so reactive that cannot practically be stored for a long period of time, making it necessary to produce O3 in situ, with ozone generators. Moreover, O3 shows a high degree of selectivity towards molds and fungi, making it a perfect killer for some species while totally ineffective for others.

O3 + SO2.

Postharvest decay control methods presented so far showed both their strong points as well as their weaknesses. No technology available today is flawless. Nonetheless, the solution could be at hand: combining two (or more) of these techniques to enhance the results and lessen the intrinsic downsides. Among all the new experiments undertaken, the combine used of SO2 and O3 as fumigant looks one of the more promising.

Recent studies showed how ozone can effectively team up with SO2, partially replacing it. When combined with ozone, sulfur dioxide needed to prevent quality losses is reduced (thus lower byproducts that can spoil fruits). Moreover, SO2 interacts with a wider spectrum of micro-organisms, suppressing molds and fungi growth where O3 can not.

Laboratory Standard Equipment. (Without MCQ Instruments)

Experimentation involving CA/MAP/fumigants required versatility. Creating proper atmospheres or selecting the desired concentration of fumigant is crucial. Standard laboratory equipment is frequently an array of mass flow controllers, single-channeled, connected with an external control unit usually unprovided any software interface for the gas mixture management.

These hardware configurations can be troublesome and may present mixture composition issues (instrument precision tends to lower especially when working with a low flow rate). Moreover, this kind of configuration doesn’t allow a fast modification of the gas mixture parameters and usually requires a lot of lab room.

The MCQ Instruments solution.

For laboratory applications requiring versatility, high precision gas mixture generation, precise gas flow meter control, and quick and easy mixture management methods, MCQ suggests the Gas Blenders. These top-notch products are appositely designed for in-laboratory experimentation.

The Gas Mixers allow the user to create multi-component dynamic gas mixtures, extremely precise and ideal to handle micro-flows with low concentration components, all of them easily manageable in full automation with bundled SOFTWARE MCQ Gas Mixture Creator Software.

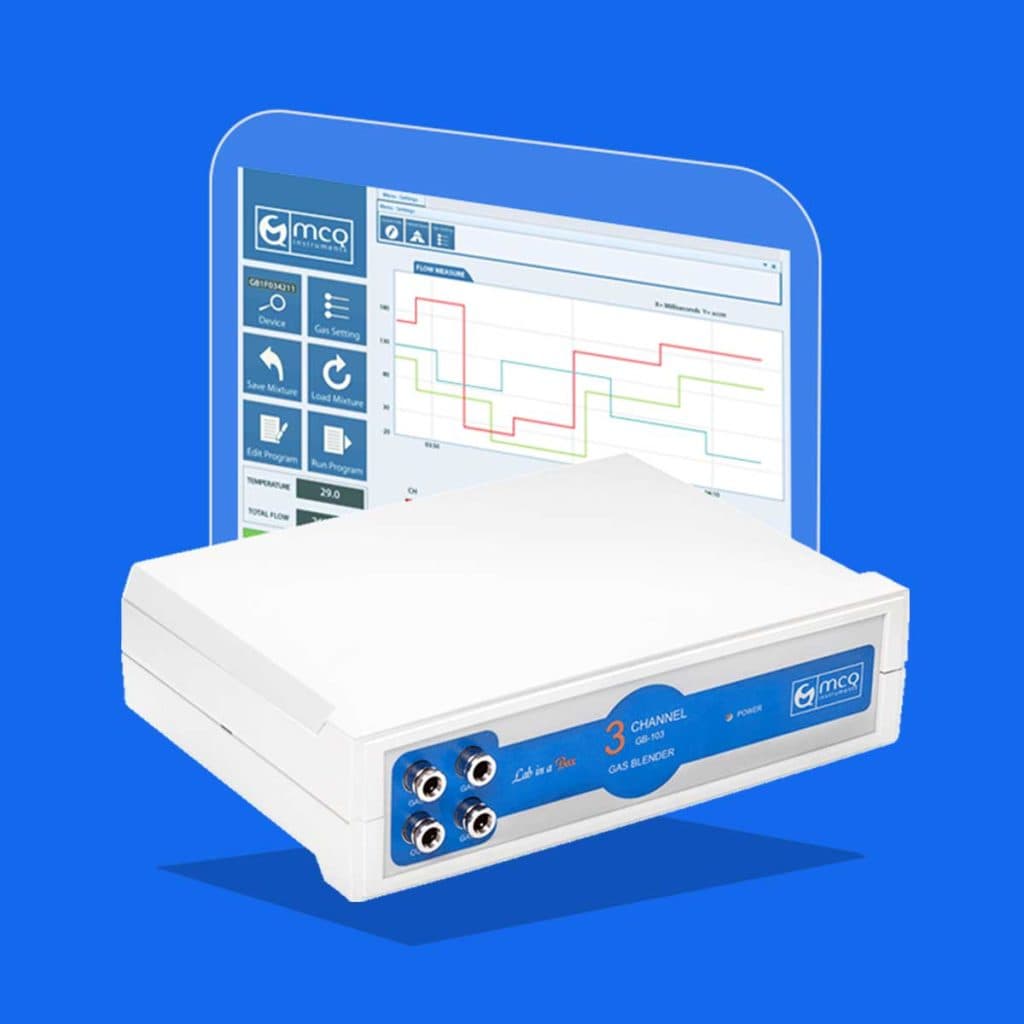

Gas Blenders & Gas Mixer Manager

The Gas Blenders Series are the improved solutions proposed by MCQ. Designed following the Lab in Box concept, the MCQ Gas Blenders are high precision instruments, easy to configure, and adaptable to many different lab applications, they offer more efficiency and an innovative quick, and easy way for mixtures management, all in a compact case.

The Gas Blenders work with up to 6 components of gas mixtures, each gas media connected to a dedicated instrument channel for which MCQ guarantees high accuracy (1.0% of setpoint), high repeatability (0.16% of reading value), and the fastest response time for setpoint value change now available in the market.

The instruments work with dry, non-aggressive gases, and the channels are always calibrated with native gases following the customer’s request. For gas mixture management, the MCQ Gas Mixture Creator Software is also provided.

Easy to use, and compatible with any common desktop or laptop PC (or touch screen for the latest products), the MCQ Software allows taking complete control over the gas mixer and its functions, letting the users start working with dynamic gas mixtures immediately with full automation.

Hardware Configuration.

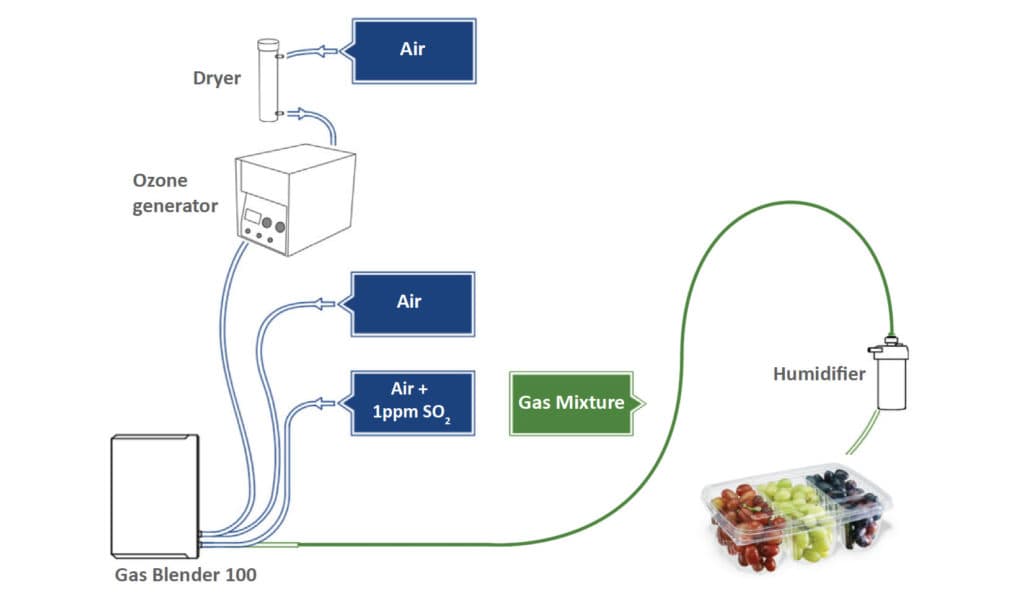

An example of MCQ Gas Blender hardware configuration is represented in the image. The gas in use are:
• Channel 1: Compressed Air.
• Channel 2: Compressed Air.
• Channel 3: Air + 1ppm SO2.

Gasses must be dry, but for compressed air, which will be used for ozone production, an additional installation of a lab dryer is recommended. The gas cylinders are connected to the instruments through 6 mm diameter tubes and a check valve is installed on each line as back-flow prevention devices.

Each gas is connected and controlled by a dedicated channel of the Gas Blenders. Another 6 mm tube finally connects the instruments to the working system (a packaging box suited to maintain a modified atmosphere) in which the experiment takes place. The up to 6 channels work together to produce a flow with proper SO2 and O3 levels. In case a higher concentration of fumigants is needed, channel 2 can be temporarily stopped. If the amount of fumigant is still not enough, another can with air + SO2 can be used in channel 2.

For fumigation experimentation a high value of relative air humidity is usually required, thus a lab humidifier is also suggested. Humidity and ozone concentration inside the studied system need supplement equipment to be monitored, while the relative amount of SO2 in the coming out mixture can be adjusted with ease, monitored, and modified by the user with the MCQ Software.

Choose your Gas Mixer.

Easy to Use, automated, flexible, multi-gas types. Start creating your dynamic Gas Mixtures by just using pure gases.

GB100

Total Flow Rate: Up to 1,5 L/min
